GCT MGC Simple Clip Dock

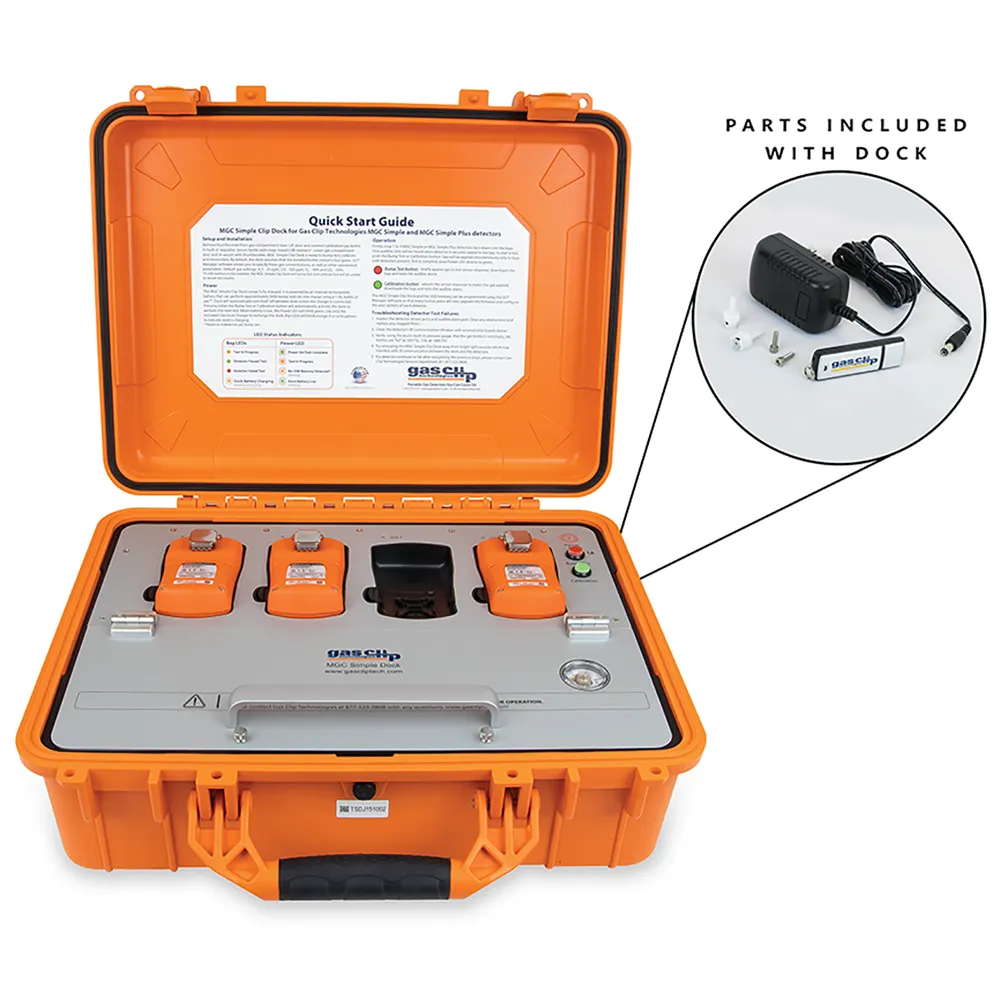

The Gas Clip Technologies MGC Simple Dock is a stand-alone, portable docking station designed for maximum efficiency in gas detector testing. It allows up to four detectors to be bump tested or calibrated at the same time, reducing both testing time and calibration gas consumption.
With simple two-button operation and no computer required, the MGC Simple Dock is easy for workers to use in the field or at the facility. All test results and detector event logs are automatically saved to a USB flash drive for effortless record-keeping and compliance.
Key Features:

Tests up to 4 detectors simultaneously
Simple one-button operation for bump tests & calibrations
Rechargeable internal battery (up to 1,500 tests per charge)

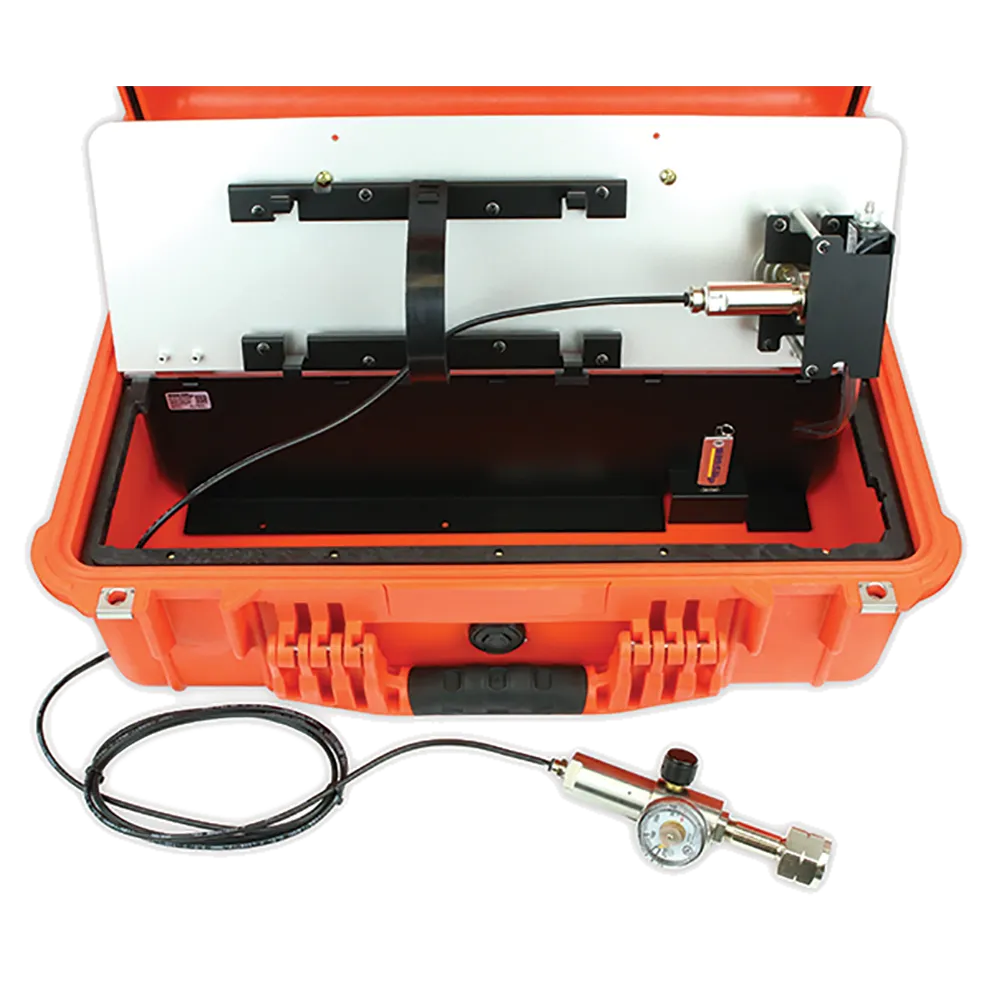

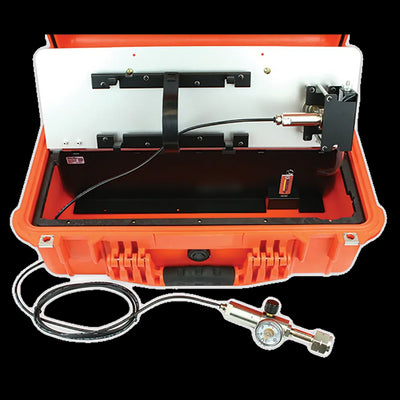

Built-in regulator and pressure gauge
USB memory for bump test and event log storage
Optional detector configuration & firmware updates via GCT Manager Software
Portable rugged case design
No PC required for operation

Compliance & Data Management:The MGC Simple Dock enables bulk programming of detectors during testing. Settings such as user ID, alarm thresholds, calibration intervals, and bump intervals can be applied across multiple detectors at once. Each bump test and calibration is logged by date, time, and detector serial number, ensuring full compliance documentation.
Model:


Part# MGC-S-DOCK


System Requirements for Advanced Programming (optional): Windows XP, Vista, 7, 10, 11
