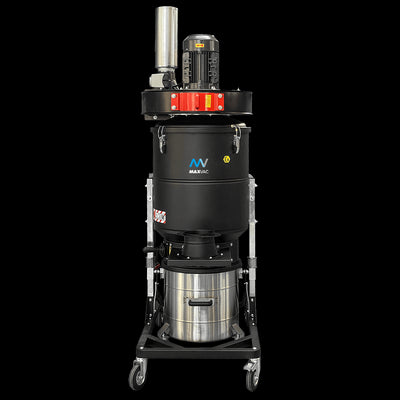

MAXVAC SUPRA SV1-825-MBTH-Z22 - £7,551.15 excl. VAT
The SV1-825-MBTH-Z22 is an ATEX Z22 certified industrial vacuum cleaner with a three-phase fan that allows you to vacuum volatile or suspended dust with an articulated arm or extraction hood. Inside the vacuum cleaner there is a large surface filter in antistatic polyester (24,000 cm2), M class certified, with a filtration efficiency of 1 micron, to vacuum electrostatically charged dust in total safety. In addition, it is possible to install an H14 filter for situations that require the suction of the finest dust. To clean the filter there is a very effective manual filter cleaning system as standard. Thanks to a lever outside the filtering chamber, the operator is able to shake the filter and deposit the dust directly in the collection container. On request, it is possible to install an automatic piston filter shaking system or a counter-current filter cleaning system. The unit is equipped with a release container on wheels with a capacity of 65Lt in AISI 304 stainless steel.
Atex Marking | II 3 D EX HTC IIIB T140°C DC |
---|---|
Bin Capacity | 65 L |
Dimensions | 630 x 1100 x 2150 mm |
Filter Class | M Class EN 60336-2-69 |
Filter Cleaning | Manual Shaker |
Filter Media | Antistatic Polyester |
Filter Surface Area | 45,000 cm2 |
Filter Type | Star Filter |
IP Rating | 55 |
Inlet Ø | 150 / 180 / 200 |
Insulation Class | F |
Max Air Flow (incl. Filters) | 1500 m3/h / 2100 m3/h / 2700 m3/h |
Max. Depression mm/H2O | 370 / 340 / 270 |
Motor Type | Atex certified fan |
Noise Level | 77 dB(A) |
Power | 4 kW / 5,5 HP |
Vacuum in Continuous Run mm/H2O | 300 / 270 / 200 |
Voltage | 400 |
Weight | 145 Kg |
