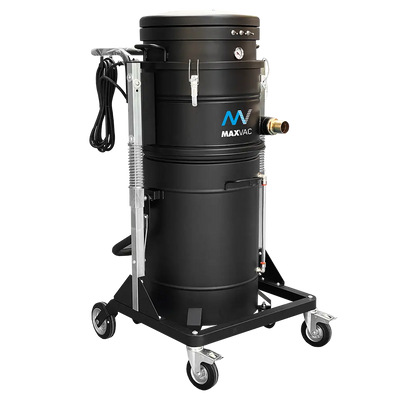

MAXVAC SUPRA SV1-470-LBO Oil & Swarf

Name: MAXVAC SUPRA SV1-470-LBO Oil & Swarf
Brand: MAXVAC
SKU: MV-SV1-470-LBO-230
Price: 3244.0 GBP
Availability: InStock

$3,244 .00 excl. VAT $3,892.80 incl. VAT

MAXVACSKU: MV-SV1-470-LBO-230

The SV1-470-LBO industrial vacuum is designed to vacuum and separate oil and swarf from the tanks, on the tables, and guides of tooling machines. Suction is generated by three motors that work in parallel and ensure an excellent suction speed. The container of this vacuum cleaner is equipped with a metal basket that is used to separate the solid part from the liquid part and a 150-micron nylon filter for more effective filtration. The floating level switch automatically stops the vacuum upon reaching maximum capacity in the container (100 lt of emulsified oil vacuumed). There is a level indicator on the outside of the container that indicates the amount of liquid inside the machine. Discharge takes place by gravity thanks to a 1” manual ball valve situated at the bottom of the container. The SV1-470-LBO industrial vacuum container is mounted on wheels, and can be lifted with a forklift, to allow the operator to empty the vacuumed material easily; this way the liquid can be poured into a collection of sediment bins.

Read complete description

Voltage: 230 Volt

Variant

Quantity:

Live chat with a
Dust Expert

Submit enquiry

$3,491.00 USD excl. VAT

MAXVAC SUPRA SV1-470-LBO Oil & Swarf - $3,244.00 USD excl. VAT

MAXVAC SUPRA FO10 Oil Catridge Filter - $247.00 USD excl. VAT

The SV1-470-LBO industrial vacuum is designed to vacuum and separate oil and swarf from the tanks, on the tables, and guides of tooling machines. Suction is generated by three motors that work in parallel and ensure an excellent suction speed. The container of this vacuum cleaner is equipped with a metal basket that is used to separate the solid part from the liquid part and a 150-micron nylon filter for more effective filtration. The floating level switch automatically stops the vacuum upon reaching maximum capacity in the container (100 lt of emulsified oil vacuumed). There is a level indicator on the outside of the container that indicates the amount of liquid inside the machine. Discharge takes place by gravity thanks to a 1” manual ball valve situated at the bottom of the container. The SV1-470-LBO industrial vacuum container is mounted on wheels, and can be lifted with a forklift, to allow the operator to empty the vacuumed material easily; this way the liquid can be poured into a collection of sediment bins.

Capacity	100 L
Dimensions	700 x 450 x 1400 mm
Filter Media\|	Filter Media\|
Filter Type	Oil Filter
Inlet Ø	50mm
Max. Air-Flow (incl. filters)	570 m3/h
Max. Depression	250 mBar
Motor Type	By-Pass
Noise Level	72 dB
Power	230V - 3,9 kW / 5,2 HP
Voltage	110/230 Volt
Warranty	12 Months
Weight	100 Kg
\|:Motors	3
