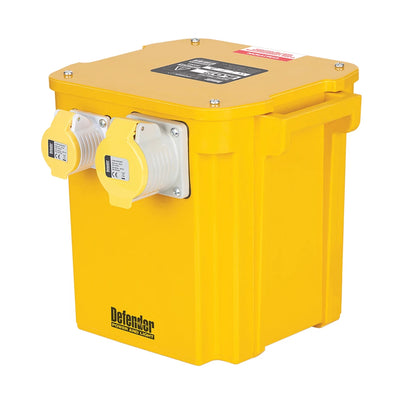

Defender 5kVA Portable Transformer 16A / 32A

Technical Description
Popular transformer built for demanding construction tasks, where mains voltage needs stepping down and isolating. Tough GRP case with 2 x 16A and 1 x 32A 110V outlets. Resettable overload protection keeps tools and appliances safe while maximising work times. For use with larger industrial power tools, lighting and heaters. Centre tapped to earth for extra safety. Input mains lead with bare ends (no plug), for hardwiring or a connector of choice (max current 23A): 1) If using the transformer up to its 2.5kVA continuous rating, supply current needed is 12A, therefore fitting a 13A UK domestic plug is permissible; alternatively a 16A (230V) industrial plug. 2) If using the transformer up to its max 5.0kVA intermittent rating, supply current needed is 23A, which far exceeds 13A mains output - recommend 32A (230V) industrial plug (or other suitably rated plug); alternatively hard wire direct to a suitable fused spur electrical point. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP44. Supplied with 1.8m cable. BSEN 61558-1 compliant. Dimensions: 280 x 315 x 355mm. Weight 31kg.




Product Features

Tough GRP case with 2 x 16A & 1 x 32A 110V outlets
Resettable thermal overload protection
Centre-tapped to earth for extra safety
For use with larger industrial power tools, lighting products, fans & extractors
BSEN61558-1 compliant




Additional Product Data



Intermittent Rating

5000VA



Continuous Rating

2800VA



Duty Cycle

5mins on / 15 mins off



Dimensions

280 x 315 x 355mm



Weight

31kg



What's in the Box

1 x E205042 5kVA Portable Transporter 110V / 32A
1 x Instruction Manual








Packaged Product Information



Dimensions (m)

0.39 (L) x 0.36 (W) x 0.32 (H)



Weight (kg)

31.00
