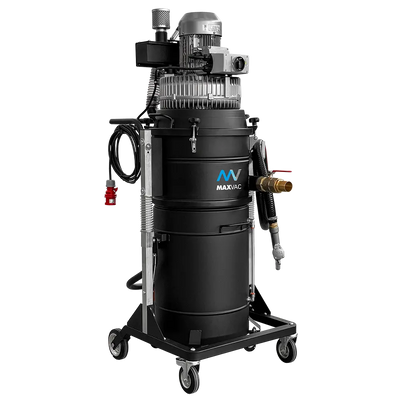

MAXVAC SUPRA SV1-425-LBO Oil & Swarf

Name: MAXVAC SUPRA SV1-425-LBO Oil & Swarf
Brand: MAXVAC
SKU: MV-SV1-425-LBO-110
Price: 5921.0 GBP
Availability: InStock

$5,921 .00 excl. VAT $7,105.20 incl. VAT

MAXVACSKU: MV-SV1-425-LBO-110

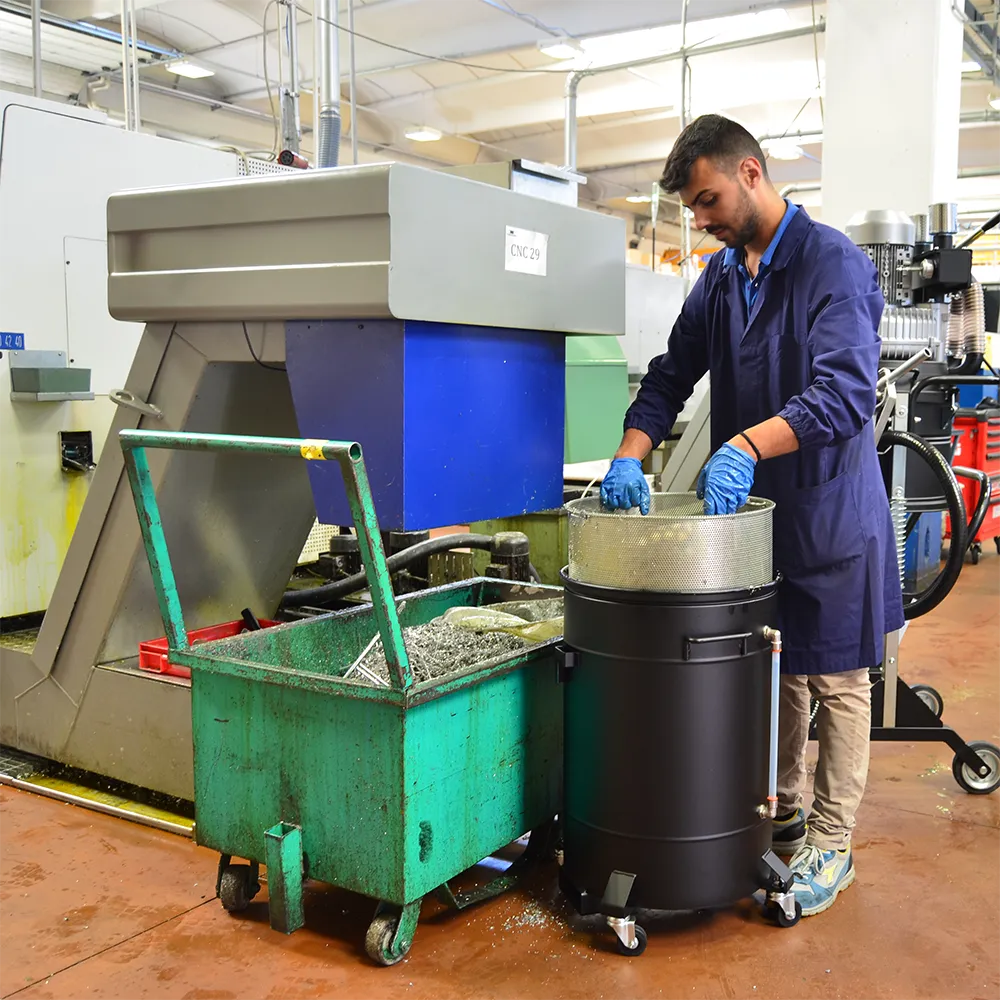

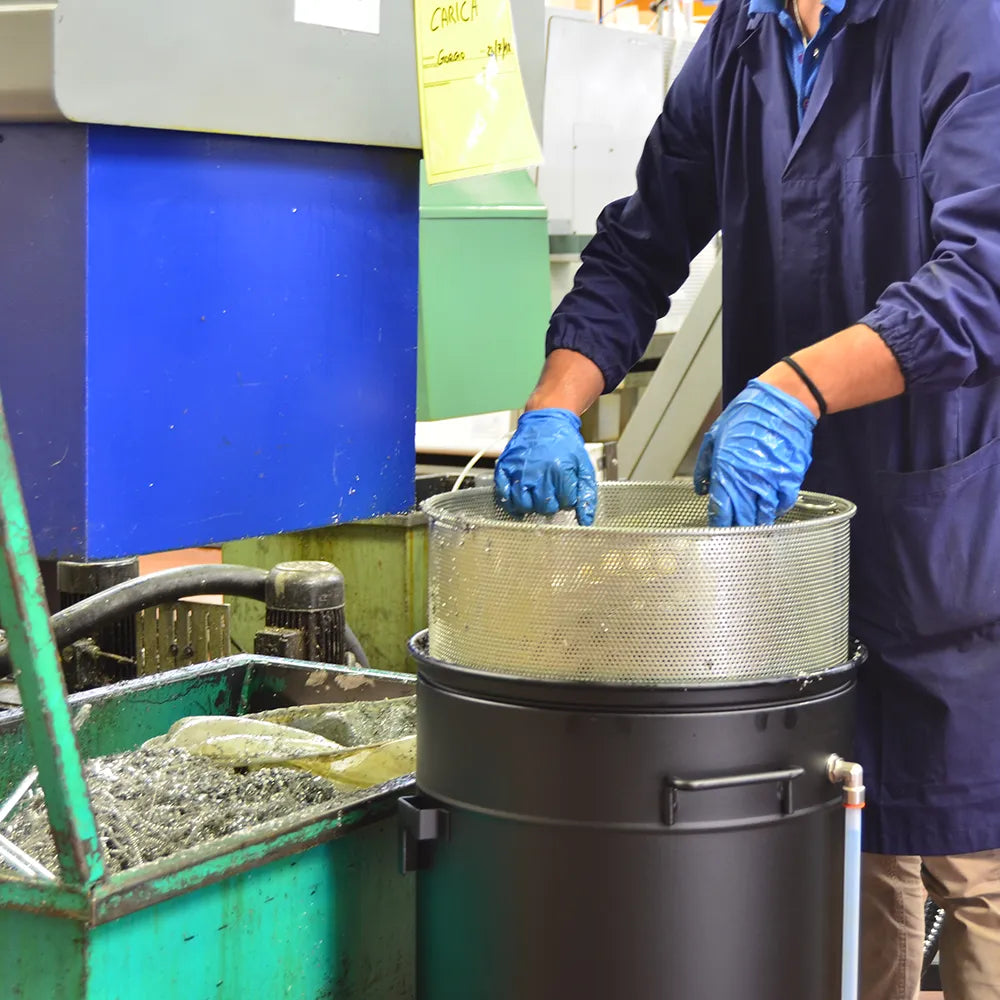

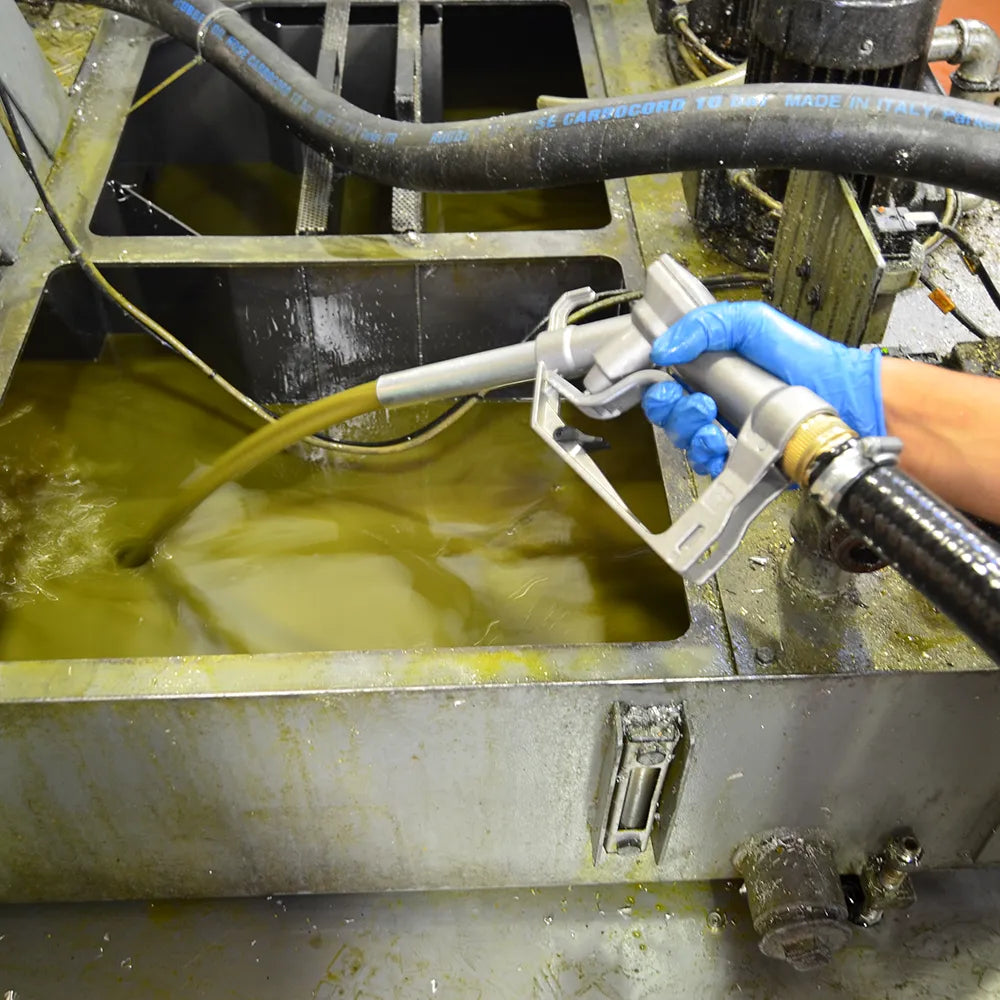

The SV1-425-LBO industrial vacuum is designed to vacuum and separate oil and swarf from the tanks, on the tables, and guides of tooling machines. Suction is generated by a side-channel turbine and ensures excellent vacuum speed and power. The SV1-425-LBO industrial vacuum can work continuously and thanks to its small size facilitates vacuuming even in the narrowest of spaces. The container of this vacuum cleaner is equipped with a metal basket that is used to separate the solid part from the liquid part and a 150-micron nylon filter for more effective filtration. The floating level switch automatically stops professional suction upon reaching maximum capacity in the container (100 l of emulsified oil vacuumed). There is a level indicator on the outside of the container that indicates the amount of liquid inside the machine. Discharge takes place by gravity thanks to a “reverse flow” system, which replenishes all of the lubricant-coolant vacuumed and filtered again in the machine.

Read complete description

Voltage: 110 Volt

Variant

Quantity:

Live chat with a
Dust Expert

Submit enquiry

$6,163.00 USD excl. VAT

MAXVAC SUPRA SV1-425-LBO Oil & Swarf - $5,921.00 USD excl. VAT

MAXVAC SUPRA FO10 Oil Catridge Filter - $242.00 USD excl. VAT

The SV1-425-LBO industrial vacuum is designed to vacuum and separate oil and swarf from the tanks, on the tables, and guides of tooling machines. Suction is generated by a side-channel turbine and ensures excellent vacuum speed and power. The SV1-425-LBO industrial vacuum can work continuously and thanks to its small size facilitates vacuuming even in the narrowest of spaces. The container of this vacuum cleaner is equipped with a metal basket that is used to separate the solid part from the liquid part and a 150-micron nylon filter for more effective filtration. The floating level switch automatically stops professional suction upon reaching maximum capacity in the container (100 l of emulsified oil vacuumed). There is a level indicator on the outside of the container that indicates the amount of liquid inside the machine. Discharge takes place by gravity thanks to a “reverse flow” system, which replenishes all of the lubricant-coolant vacuumed and filtered again in the machine.

Capacity	100 L
Dimensions	840 x 710 x 1620 mm
Filter Media\|	Filter Media\|
Filter Type	Oil Filter
Inlet Ø	50mm
Max. Air-Flow (incl. filters)	350 m3/h
Motor Type	side channel blower
Noise Level	74 dB
Power	230 -2,2 kW / 3 HP
Vacuum in continuous run	180 mBar
Voltage	110/230 Volt
Warranty	12 Months
Weight	110 Kg
\|:Motors	1
