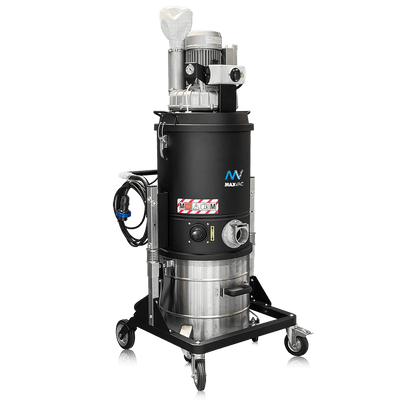

MAXVAC SUPRA SV1-825-MBSV

Name: MAXVAC SUPRA SV1-825-MBSV
Brand: MAXVAC
SKU: MV-SV1-825-MBSV-415
Price: 7124.0 GBP
Availability: InStock

$7,124 .00 excl. VAT $8,548.80 incl. VAT

MAXVACSKU: MV-SV1-825-MBSV-415

The SV1-825-MBSV is a compact industrial vacuum fitted with a side-channel turbine, situated at the back under a sturdy metal casing. The turbine has a vacuum breaker safety valve, installed as standard.
The filter chamber contains a large surface polyester filter, certified as M Class (1-micron filtration efficiency), ideal for working with even the finest dust. In this model of the MAXVAC three-phase range, a different filter can be installed depending on the professional application.
Teflon water-repellent filters, Nomex 250°C resistant filters, and filters with PTFE treatment for more binding and difficult dust are also available. The unit can be fitted with an H14 absolute filter on demand.
The SV1-825-MBSV industrial vacuum is equipped with a large 100 Lt detachable container on wheels that allows the operator to empty the vacuumed material easily. Disposable collection bags can also be used. A floating system can be provided in the container to vacuum liquids in complete safety.

SUCTION UNIT
The suction unit is a side channel blower with direct coupling between motor and impeller. The side channel blower is equipped with a safety valve to guarantee continued work in complete safety, without any maintenance. The blower is also equipped with a metal silencer to maintain a low noise level.
MANUAL FILTER SHAKER
On one side of the filter chamber there is an ergonomic manual shaker through which the operator can easily and quickly clean the filter, removing any dust and debris from its surface. Thanks to this smart cleaning system the operator can carry on working without needing to change or wash the filter.
FILTERING ELEMENT
The filtration is guaranteed by an M class polyester filter. The star shape enables air to flow through the filter even when it is dirty. The fabric of the filter is classified as M Class (BIA | EN 60335-2-69). This means that all particles till 1 micron are stopped by the filter so as to protect the motors and the operator around the vacuum cleaner.
COLLECTION BIN
The material is collected inside a painted 65/100L container equipped with a metal handle which enables the bin to be detached from the machine. Thanks to its 4 swiveling wheels, the bin can be easily moved and emptied

Read complete description

Quantity:

Live chat with a
Dust Expert

Submit enquiry

Antistatic Rubber End Cuff 50mm for standard hose

$7,140.00 USD excl. VAT

MAXVAC SUPRA SV1-825-MBSV - $7,124.00 USD excl. VAT

Antistatic Rubber End Cuff 50mm for standard hose - $16.00 USD excl. VAT

The SV1-825-MBSV is a compact industrial vacuum fitted with a side-channel turbine, situated at the back under a sturdy metal casing. The turbine has a vacuum breaker safety valve, installed as standard.

The filter chamber contains a large surface polyester filter, certified as M Class (1-micron filtration efficiency), ideal for working with even the finest dust. In this model of the MAXVAC three-phase range, a different filter can be installed depending on the professional application.

Teflon water-repellent filters, Nomex 250°C resistant filters, and filters with PTFE treatment for more binding and difficult dust are also available. The unit can be fitted with an H14 absolute filter on demand.

The SV1-825-MBSV industrial vacuum is equipped with a large 100 Lt detachable container on wheels that allows the operator to empty the vacuumed material easily. Disposable collection bags can also be used. A floating system can be provided in the container to vacuum liquids in complete safety.

SUCTION UNIT

The suction unit is a side channel blower with direct coupling between motor and impeller. The side channel blower is equipped with a safety valve to guarantee continued work in complete safety, without any maintenance. The blower is also equipped with a metal silencer to maintain a low noise level.

MANUAL FILTER SHAKER

On one side of the filter chamber there is an ergonomic manual shaker through which the operator can easily and quickly clean the filter, removing any dust and debris from its surface. Thanks to this smart cleaning system the operator can carry on working without needing to change or wash the filter.

FILTERING ELEMENT

The filtration is guaranteed by an M class polyester filter. The star shape enables air to flow through the filter even when it is dirty. The fabric of the filter is classified as M Class (BIA | EN 60335-2-69). This means that all particles till 1 micron are stopped by the filter so as to protect the motors and the operator around the vacuum cleaner.

COLLECTION BIN

The material is collected inside a painted 65/100L container equipped with a metal handle which enables the bin to be detached from the machine. Thanks to its 4 swiveling wheels, the bin can be easily moved and emptied

Capacity	65 L (100L opt.)
Dimensions	660 x 800 x 1530 mm
Filter Class	M Class (EN 60336-2-69)
Filter Cleaning	Manual Shaker
Filter Media	Polyester
Filter Surface Area	24,000 cm2
Filter Type	Star filter
IP Rating	55
Inlet Ø	70 mm
Insulation Class	F
Max Air-Flow (incl. filters)	340 m3/h
Max Depression	230 mBar
Motor Type	Side Channel Blower
Noise Level	72 dB
Power	3 kW / 4 HP
Relief Valve	Included
Vacuum in continuous run	230 mBar
Voltage	400 Volt
Warranty	12 Months
Weight	88 Kg
