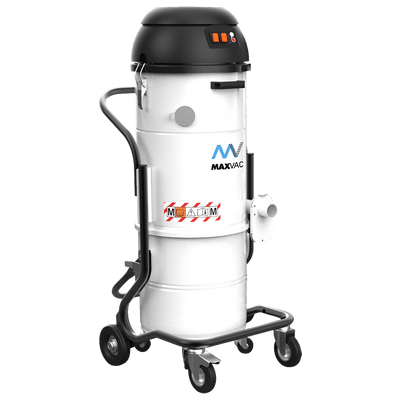

MAXVAC SUPRA SV1-430-MBS

Name: MAXVAC SUPRA SV1-430-MBS
Brand: MAXVAC
SKU: MV-SV1-430-MBS-110
Price: 2201.0 GBP
Availability: InStock

$2,201 .00 excl. VAT $2,641.20 incl. VAT

MAXVACSKU: MV-SV1-430-MBS-110

Compact single-phase industrial vacuum with large filtering surface and semi-automatic filter cleaning system. It is ideal for dry and difficult dust and can be connected to a power tool. It has a 45 Litre detachable container.

SUCTION UNIT
The vacuum is generated by 2 by-pass motors. Each motor is managed by an independent switch, permitting the operator to control the intake performance.The motors are located in a sturdy casing, with an insulating sponge to maintain a low noise level.

FILTER CLEANING SYSTEM
The vacuum cleaner is equipped with a new AirPulse filter cleaning system. Using the difference in pressure outside and inside the vacuum cleaner, the system generates an air jet which by traveling through the cartridge detaches the dust from the filter's surface. It is a fast and efficient way to keep the filter clean during operations, without stopping the vacuuming operations.

FILTERING ELEMENT
The filtration is guaranteed by a sturdy polyester filtering cartridge. The cartridge is made to ensure large filter surface (34.000 cm2) in a compact space. This way air can pass through when the filter is dirty too. The filter is M Class (BIA | EN 60335-2-69) certified. It stops the particles until 1 micron, preserving the motors and the operator.

COLLECTION BIN
The collected material is stocked inside a painted container. Thanks to its 4 swivelling wheels, the bin can be easily moved and emptied.

Hose and wand needs to be purchased separately

Read complete description

Voltage: 110 Volt

Variant

Quantity:

Live chat with a
Dust Expert

Submit enquiry

MAXVAC SUPRA Accessory - ATEX Kit PRO Ø 40mm

$2,510.00 USD excl. VAT

MAXVAC SUPRA SV1-430-MBS - $2,201.00 USD excl. VAT

MAXVAC SUPRA Accessory - ATEX Kit PRO Ø 40mm - $309.00 USD excl. VAT

Compact single-phase industrial vacuum with large filtering surface and semi-automatic filter cleaning system. It is ideal for dry and difficult dust and can be connected to a power tool. It has a 45 Litre detachable container.

SUCTION UNIT

The vacuum is generated by 2 by-pass motors. Each motor is managed by an independent switch, permitting the operator to control the intake performance.
The motors are located in a sturdy casing, with an insulating sponge to maintain a low noise level.

FILTER CLEANING SYSTEM

The vacuum cleaner is equipped with a new AirPulse filter cleaning system. Using the difference in pressure outside and inside the vacuum cleaner, the system generates an air jet which by traveling through the cartridge detaches the dust from the filter's surface. It is a fast and efficient way to keep the filter clean during operations, without stopping the vacuuming operations.

FILTERING ELEMENT

The filtration is guaranteed by a sturdy polyester filtering cartridge. The cartridge is made to ensure large filter surface (34.000 cm2) in a compact space. This way air can pass through when the filter is dirty too. The filter is M Class (BIA | EN 60335-2-69) certified. It stops the particles until 1 micron, preserving the motors and the operator.

COLLECTION BIN

The collected material is stocked inside a painted container. Thanks to its 4 swivelling wheels, the bin can be easily moved and emptied.

Hose and wand needs to be purchased separately

Capacity	45 Litre
Dimensions	516 x 545 x 1285 mm
Filter Class	M Class EN 60336-2-69
Filter Cleaning	AirPulse
Filter Media	PTFE
Filter Surface Area	40,000 cm2
Filter Type	Conical Catridge
Hose Connection	50 mm
Max Air-Flow (incl. filters)	380 m3/h
Max Depression	250 mBar
Motor Type	By-Pass
Motors	2
Noise Level	72 dB
Power	2,6 kW / 3,5 HP
Voltage	110 Volt / 230 Volt
Warranty	12 Months
Weight	45 Kg
