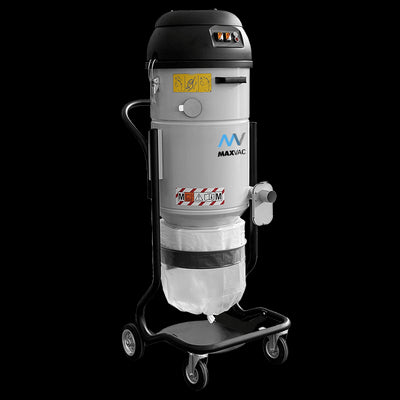

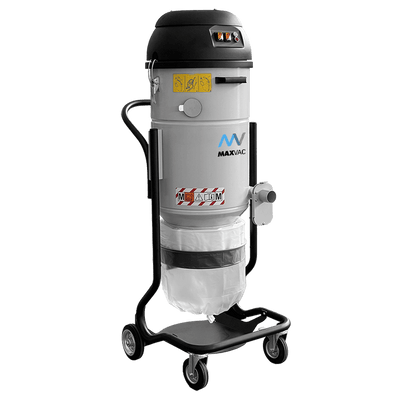

MAXVAC SUPRA SV1-430-MLS

Name: MAXVAC SUPRA SV1-430-MLS
Brand: MAXVAC
SKU: MV-SV1-430-MLS-110
Price: 2647.0 GBP
Availability: InStock

$2,647 .00 excl. VAT $3,176.40 incl. VAT

MAXVACSKU: MV-SV1-430-MLS-110

Small single-phase industrial vacuum with two by-pass motors, large filtering surface and semi-automatic filter cleaning system. It is ideal for dry and difficult dust. It can be connected to a power tool or to a floor polisher. The vacuum cleaner is fitted with a Longopac® bagging system.

SUCTION UNIT
The vacuum is generated by 2 by-pass motors. Each motor is managed by an independent switch, permitting the operator to control the intake performance.The motors are located in a sturdy casing, with an insulating sponge to maintain a low noise level.

FILTER CLEANING SYSTEM
The vacuum cleaner is equipped with a new filter cleaning system. Using the difference in pressure outside and inside the vacuum cleaner, the system generates an air jet which by traveling through the cartridge detaches the dust from the filter's surface. It is a fast and efficient way to keep the filter clean during operations, without stopping the vacuuming operations.

FILTERING ELEMENT
The filtration is guaranteed by a sturdy polyester filtering cartridge. The cartridge is made to ensure large filter surface in a compact space. This way air can pass through when the filter is dirty too. The filter is M Class (BIA | EN 60335-2-69) certified. It stops the particles till 1 micron, preserving the motors and the operator.

LONGOPAC®
The vacuumed material is collected inside a durable plastic bag named Longopac® which is 20 mt. long. The bag is rolled up under the filter chamber and is adjustable for every need. The operator, once the bag is full, will seal the bag by closing it above the collected material, which falls automatically inside the bag during the vacuuming operations. The full part of the bag can subsequently be cut off and disposed of, in total safety, without any contact occurring between the operator and the material.

Read complete description

Voltage: 110 Volt

Variant

Quantity:

Live chat with a
Dust Expert

Submit enquiry

$3,037.00 USD excl. VAT

MAXVAC SUPRA SV1-430-MLS - $2,647.00 USD excl. VAT

MAXVAC SUPRA FC10 Cartridge Filter - $390.00 USD excl. VAT

Small single-phase industrial vacuum with two by-pass motors, large filtering surface and semi-automatic filter cleaning system. It is ideal for dry and difficult dust. It can be connected to a power tool or to a floor polisher. The vacuum cleaner is fitted with a Longopac® bagging system.

SUCTION UNIT

The vacuum is generated by 2 by-pass motors. Each motor is managed by an independent switch, permitting the operator to control the intake performance.
The motors are located in a sturdy casing, with an insulating sponge to maintain a low noise level.

FILTER CLEANING SYSTEM

The vacuum cleaner is equipped with a new filter cleaning system. Using the difference in pressure outside and inside the vacuum cleaner, the system generates an air jet which by traveling through the cartridge detaches the dust from the filter's surface. It is a fast and efficient way to keep the filter clean during operations, without stopping the vacuuming operations.

FILTERING ELEMENT

The filtration is guaranteed by a sturdy polyester filtering cartridge. The cartridge is made to ensure large filter surface in a compact space. This way air can pass through when the filter is dirty too. The filter is M Class (BIA | EN 60335-2-69) certified. It stops the particles till 1 micron, preserving the motors and the operator.

LONGOPAC®

The vacuumed material is collected inside a durable plastic bag named Longopac® which is 20 mt. long. The bag is rolled up under the filter chamber and is adjustable for every need. The operator, once the bag is full, will seal the bag by closing it above the collected material, which falls automatically inside the bag during the vacuuming operations. The full part of the bag can subsequently be cut off and disposed of, in total safety, without any contact occurring between the operator and the material.

Capacity	Longopac
Dimensions	585 x 545 x 1395 mm
Filter Class	M Class EN60336-2-69
Filter Cleaning	AirPulse
Filter Media	PTFE
Filter Surface Area	40,000 cm2
Filter Type	Conical Cartridge
Inlet Ø	50 mm
Max Air-Flow (incl. filters)	380 m3/h
Max Depression	250 mBar
Motor Type	By-Pass
Motors	2
Noise Level	72 dB
Power	2,6 kW / 3,5 HP
Voltage	110 Volt / 230 Volt
Warranty	12 Months
Weight	45 Kg
