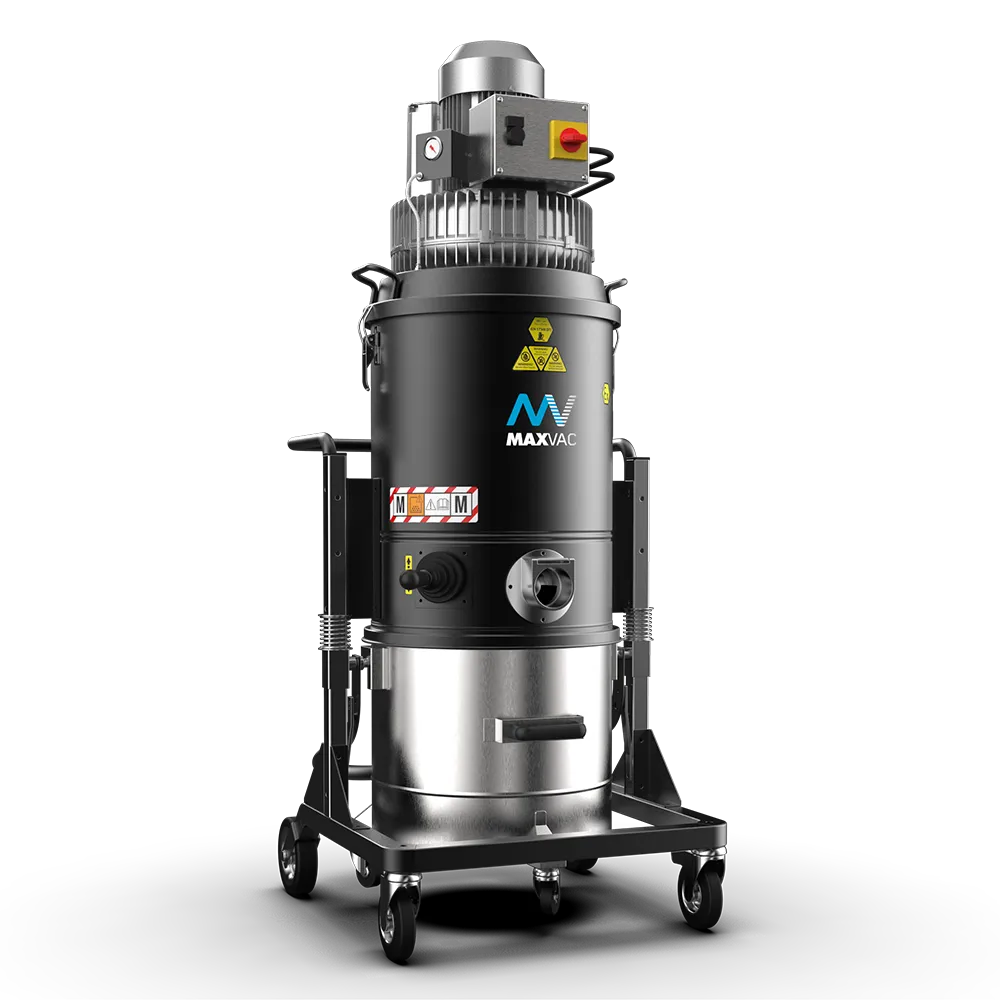

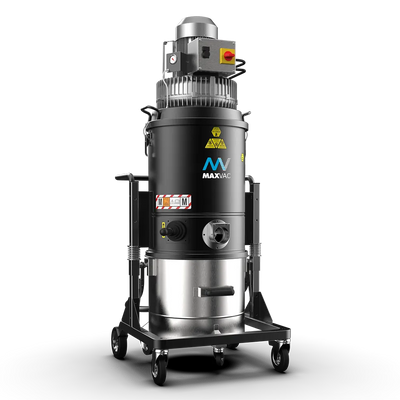

MAXVAC Supra SV1-825-MBSV-Z22 2.0

The MAXVAC Supra SV1-825-MBSV-Z22 2.0 is a high-performance industrial vacuum engineered for safe and efficient dust extraction in ATEX Zone 21 and 22 environments. This unit delivers powerful performance with advanced safety features, making it ideal for hazardous dust applications across industrial, food production, and construction sectors.

Powered by a robust 4–5.5kW ATEX-certified side channel blower, this industrial vacuum ensures consistent suction performance with an impressive airflow of 350 m³/h and strong vacuum pressure. Its 400V 50/60Hz configuration and IP55 protection rating make it well-suited for demanding site conditions, offering dependable operation where continuous performance is essential.

The unit is certified with ATEX marking II 1/2D Ex h IIIC T160 Da/Db, ensuring safe handling of combustible dust in Zones 21 and 22. A built-in relief valve enhances operational safety, while the integrated grounding system provides additional protection in sensitive environments.

Designed for practicality and durability, the vacuum features a 65L AISI 304 stainless steel collection bin. This generous capacity supports longer working intervals while remaining easy to handle and maintain. The compact footprint (600 x 800 mm) and manageable height of 1630 mm ensure it fits efficiently into industrial workflows, while its sturdy 95 kg build enhances durability without compromising maneuverability.

Filtration is where this unit truly excels. Equipped with a large 24,000 cm² M-Class primary filter made from antistatic polyester, it captures fine dust effectively while maintaining airflow. The manual filter cleaning system allows operators to maintain peak performance with minimal downtime. For environments requiring even higher filtration standards, an optional H14 absolute filter with 28,000 cm² fiberglass media is available, delivering exceptional fine particle retention.

Operating within a wide temperature range of -20°C to +40°C, this vacuum is built to perform reliably in varied working conditions. Despite its powerful output, it is designed to maintain a controlled noise level of 72 dB(A), supporting a more comfortable working environment.

This industrial vacuum is ideally suited for hazardous dust extraction in sectors such as manufacturing, food processing, construction, and specialist trades where ATEX compliance is critical.

A powerful, compliant, and durable solution—trusted by professionals who demand safe and efficient dust control in explosive environments.
