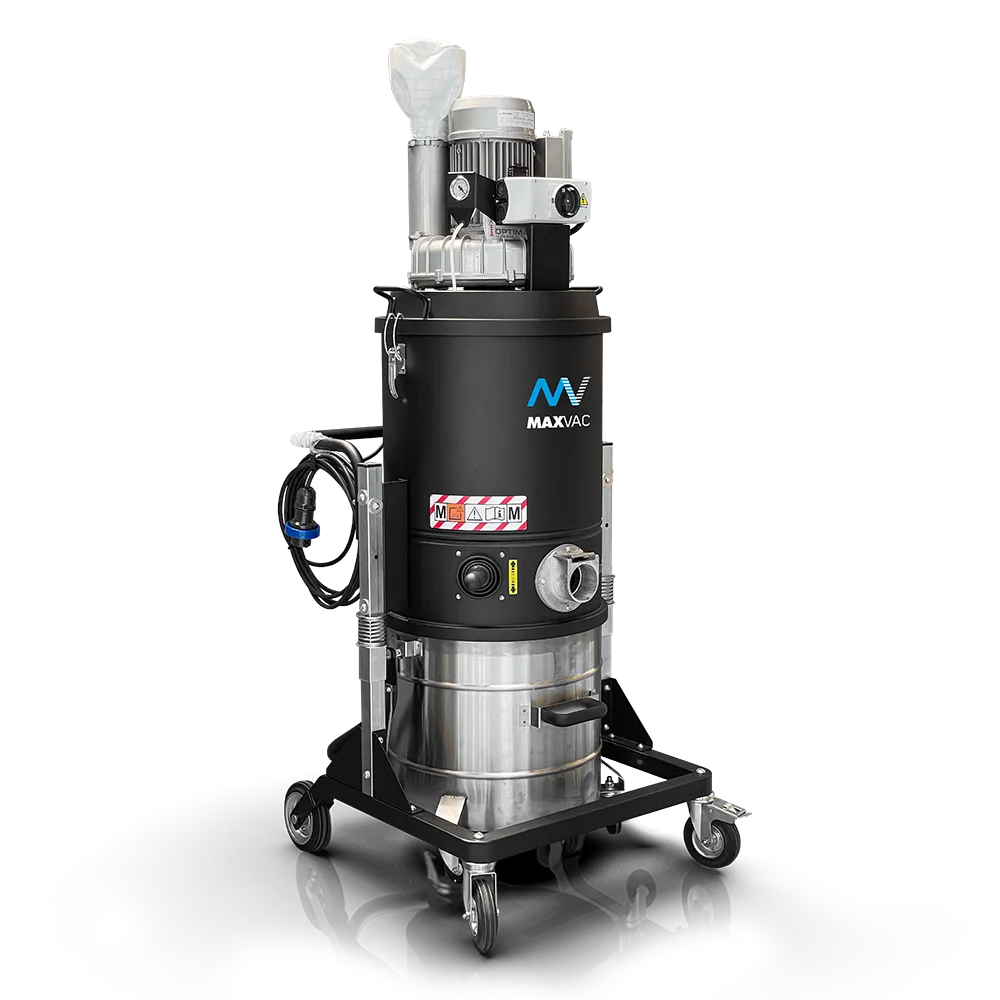

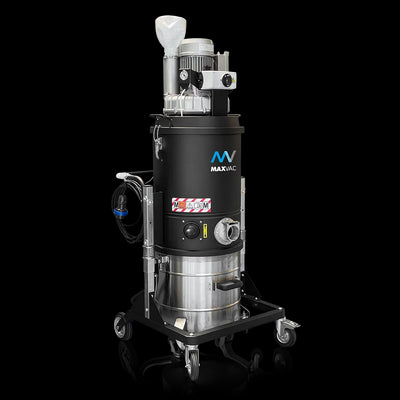

MAXVAC Supra SV1-425-MBSV-Z2-22 - $5,419.00 USD excl. VAT
Engineered for intensive and continuous use in potentially explosive atmospheres, the MAXVAC Supra SV1-425-MBSV-Z2-22 is a robust industrial vacuum designed for safe dust extraction in Atex Zone 2 and 22 areas. With a certified 1.8kW Atex side channel blower and antistatic polyester M-Class filtration, it ensures safe, reliable performance for fine powders, solids, and shavings.
Built to meet the demands of industrial, food production, and construction environments, this model combines rugged durability with excellent maneuverability. Its compact steel construction and non-marking, pivoting wheels with integrated brakes make it easy to operate even in confined spaces.
The high-efficiency filter system features a large 24,000 cm² surface area and a manual shaker for fast cleaning without dismantling. A built-in vacuum gauge indicates when maintenance is needed, reducing downtime and maximising productivity.
Collected material is safely contained in a 65L AISI 304 stainless steel bin, designed with grounding and spark-prevention features to mitigate static discharge risks. The vacuum also includes a pressure relief valve for continuous operation without overheating, making it ideal for demanding and hazardous applications.
Ideal for use in Atex-regulated industrial, food, or construction environments where safety, power, and dust control are non-negotiable.
| ATEX Marking | II 3 GD Ex htc IIIB T140°C Gc/Dc |
|---|---|
| Air Flow (incl. Filters) | 240m3/h |
| Classification | Class M EN 60335-2-69 |
| Depression | 180mBar |
| Dimensions | 660 x 800 x 1630mm |
| Drum Capacity | 65 L |
| Filter Cleaning | AirPulse |
| Filter Media Material | Antistatic polyester |
| Filter Surface Area | 24000cm2 |
| Filter Type | Star |
| IP Rating | 55 |
| Inlet | 70Ø mm |
| Motors | Atex side channel blower |
| Noise Level | 72dB(A) |
| Power | 1,8 kW - 2,4 HP |
| Voltage | 230V |
