MAXVAC SUPRA SV1-430-MBA-A45R-Z22-IIIC

Name: MAXVAC SUPRA SV1-430-MBA-A45R-Z22-IIIC
Brand: MAXVAC
SKU: MV-SV1-430-MBA-A45R-Z22-IIIC-110
Price: 7989.0 GBP
Availability: InStock

ATEX Vacuum for Conductive Dust, IIIC-Certified, Brushless, 45L

$7,989 .00 excl. VAT $9,586.80 incl. VAT

Add to quote

MAXVACSKU: MV-SV1-430-MBA-A45R-Z22-IIIC-110

The SV1-430-MBA-A45R-Z22-IIIC is an industrial, IIIC-certified vacuum cleaner designed for the extraction of conductive metal dust. SV1-430-MBA-A45R-Z22-IIIC is a vacuum cleaner equipped with a powerful single-phase Brushless motor, which ensures high performance and maximum safety even in hazardous areas.

For material collection,...

Read complete description

Voltage:

Variant

Call for availability

Quantity:

Submit enquiry

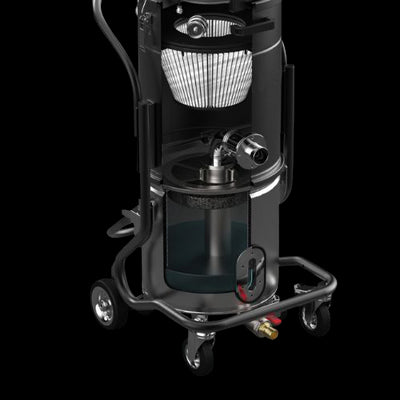

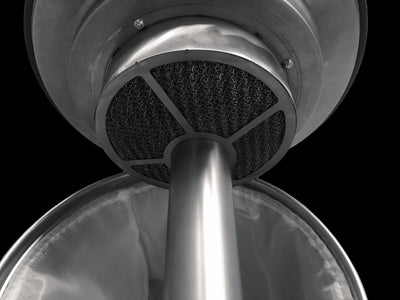

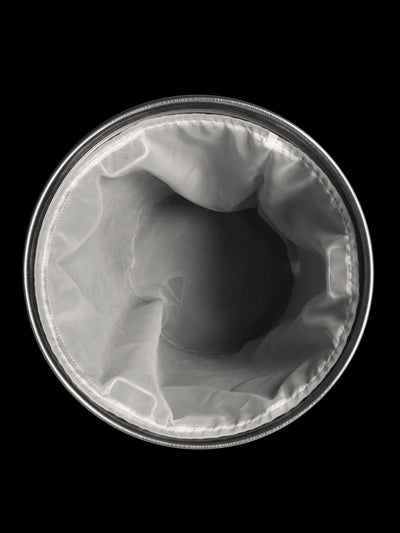

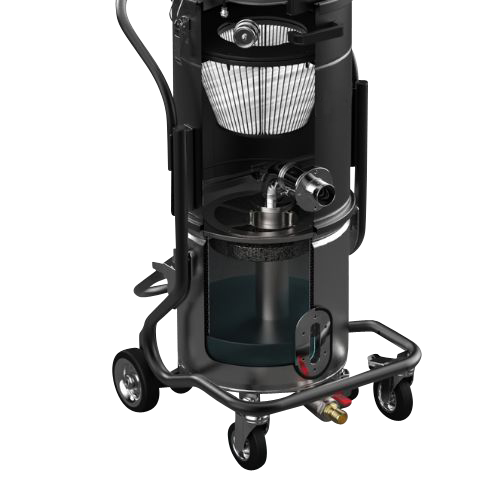

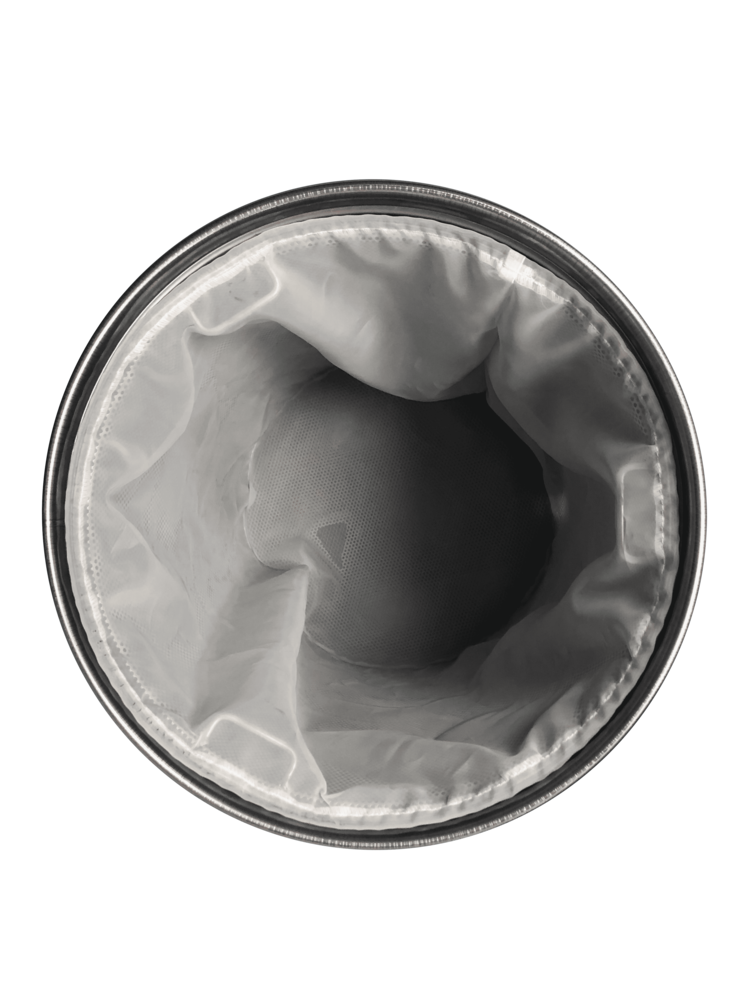

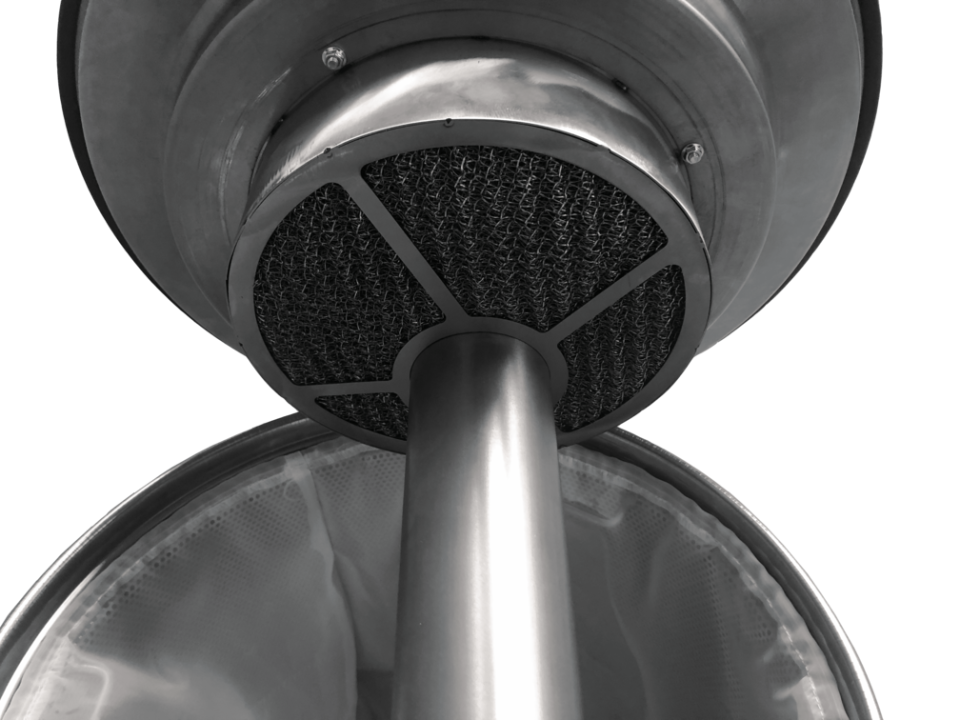

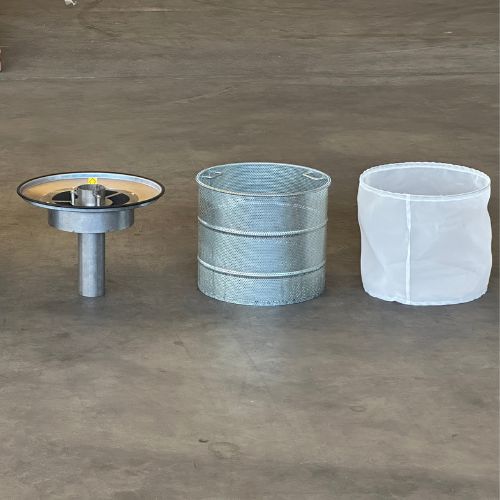

For material collection, the vacuum cleaner is equipped with a sophisticated explosion-proof system for suction of conductive metal powders, which are directly immersed in a bath of inert liquid in the container. The motor is protected by a class H13 large-surface antistatic conical filter. The vacuum cleaner provides additional levels of filtration inside the container to ensure the highest standards of safety even in suction of potentially explosive dust: in fact, inside the inerting container there is a metal grid filter to trap any sparks and a nylon filter, capable of separating the sucked metal poor from the inert liquid, to be then recovered and reused. A convenient patented quick-connect system allows the container to be unhooked and reconnected in one easy motion and without the use of tools. An overpressure valve allows gas to escape in cases of reaction of the powder with the liquid used.

Discharge of the liquid used is by gravity via a convenient tap located at the bottom of the container. The container is made of AISI 304 stainless steel and has a convenient inspection window on the front to check the level of the liquid inside.

Thanks to the SV1-430-MBA-A45R-Z22-IIIC sucking up metal conductive dust to neutralize it has never been easier and safer!

User Manual

Atex Marking	II 3D Ex htc IIIC T140°C Dc
Capacity	45 L
Dimensions	550 x 620 x 1400 mm
Filter Media	Antistatic Polyester
Filter Surface Area	35,000 cm2
Filter Type	Cartridge Filter
Max Air-Flow (incl. filters)	220 m3/h
Motor Type	Brushless Motor
Noise Level	72 dB
Power	1,1 kW / 1,5 HP
Vacuum in continuous run	230 mBar
Voltage	110 Volt / 230 Volt
Warranty	12 Months
Weight	50 Kg
Ø Inlet	50 mm
